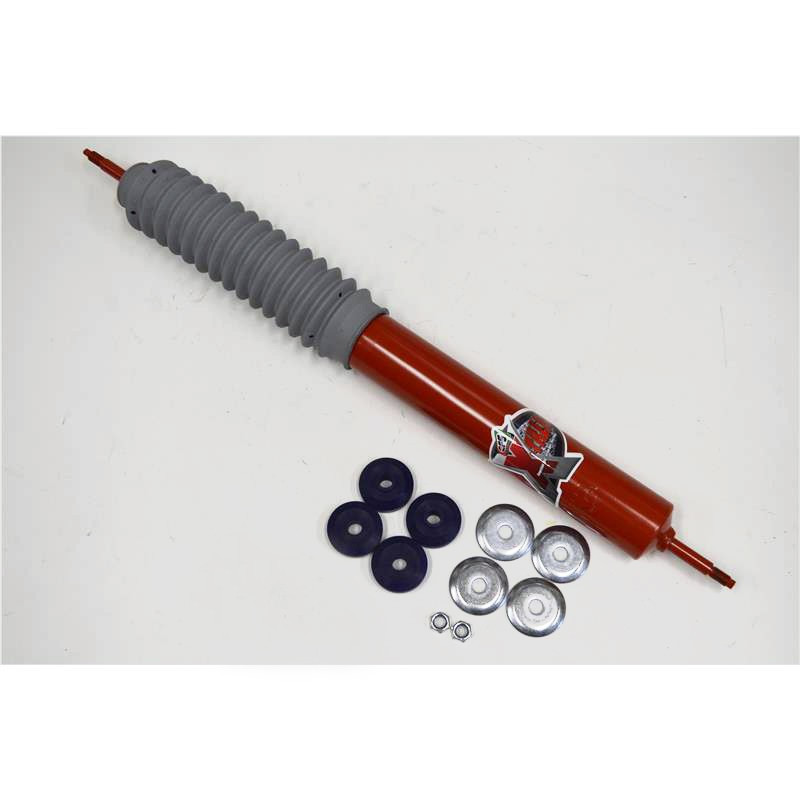

EFS EXTREME shock absorber front +150mm Nissan Patrol Y60 Y61

EFS ENFORCER

SHOCK ABSORBERS

The EFS Enforcer is designed for the price-conscious 4WD enthusiast who needs a shock absorber that gets the job done. 51 mm outer tube for greater oil capacity and lower valve operating temperature.

Technical data:

• Low pressure nitrogen gas -To prevent oil cavitation (foaming).
• Long spring travel design -To maximize wheel travel and increase maneuverability when lifting the vehicle.
• 32 mm piston, twin tube construction - Greater control over the spring during the retract and depressurization cycles.
• 15 mm, quality hardened, chrome-plated piston rod - Increases durability.
• 1.2 mm outer and inner wall thickness - For greater durability and strength
• Dynamic Motion Control technology - Adapts to different road and terrain conditions
• High-quality internal and external components - To prevent wear in harsh conditions and long-life polyurethane bushings for durability

EFS ELITE

SHOCK ABSORBERS

The EFS Elite shock absorber series was developed for 4wd owners who seek only the best for their four-wheel drive vehicle. EFS is made of high-quality internal and external components, which together provide excellent performance and long service life. EFS shock absorbers are vehicle and height specific, with the valves developed specifically for each vehicle.
"Not all shock absorbers fit all"

Technical specifications:

• 51mm - 60mm outer tube - Greater oil capacity to keep the valve at a lower operating temperature.
• Low pressure nitrogen gas - Prevents oil cavitation (foaming).
• Long travel - Maximizes wheel mobility
  35mm piston, twin-tube construction - Increased control over the spring during the recoil and compression cycles.
• 16 mm quality hardened chrome-plated piston rod Longer life and greater lateral strength
• 1.5 mm outer and inner wall thickness Greater durability and strength
• Dynamic motion control valve - Adapts to different road and off-road conditions
• Polyurethane and rubber bushings - high quality elastomer and rubber mounting bushings tailored to specific applications.

EFS XTR

SHOCK ABSORBERS

The EFS XTRshock absorber series has been specifically developed for Out-back touring cars, heavy-duty off-road vehicles. It has been enhanced with increased oil capacity to reduce operating temperatures and has an extremely robust construction to withstand the roughest Australian Off-Road roads. EFS XTR shock absorbers are designed and developed to fit all vehicles, and not one shock absorber fits all. They are built with high quality internal and external components to meet the demands of modern off-road vehicles.

Specifications:

• 64mm outer tube - Greater oil capacity to keep the valve at a lower operating temperature.
• Low pressure nitrogen gas - Helps prevent oil cavitation (foaming).
• Long travel design - Maximizes wheel movement.
• 40 mm piston, twin-tube construction - Increased spring control during the retraction and compression cycles.
• 20 mm quality hardened chrome-plated piston rod - Longer life and greater lateral strength.
• 2 mm outer and inner wall thickness - Greater durability and strength
• Dynamic motion control valve - Adapts to different road and terrain conditions Vehicle and height specific valving
• Mounting bushings - EFS uses long-life polyurethane and rubber bushings depending on the application.

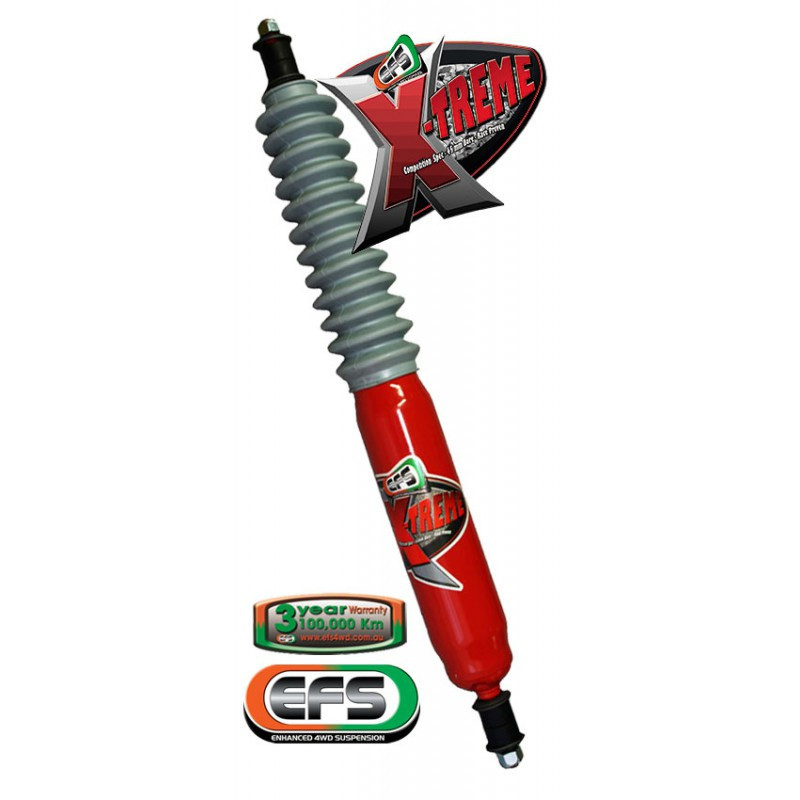

EFS X-TREME

SHOCK ABSORBERS

The EFS X-Treme shock absorbers and struts are our premium offering, with a proven and recognized reputation in the racing and retail markets. Born over a decade ago from the demands of 4WD racing, they have become one of the toughest family-friendly suspension solutions on the market today. Offering unsurpassed durability, handling and ride quality across a wide range of unpaved, bumpy Off-road tracks and extremely demanding terrain environments.

...are you ready to enjoy X-TREME shock absorbers on your next 4WD adventures?

Technical specifications:

• Oversized eye and bolt mounts
• 20mm hardened chrome-plated piston rod
• Durable, oversized Concertina dust bag
• 2mm H/D outer wall thickness
• Internal hydraulic anti-kickback
• Bonded rubber eyelets
• Special high temperature fluid
• Quality multi-lip Viton seal
• High strength steel piston rings
• Large 45mm bore
• Twin-tube hydraulic design
• Dynamic motion control valve
