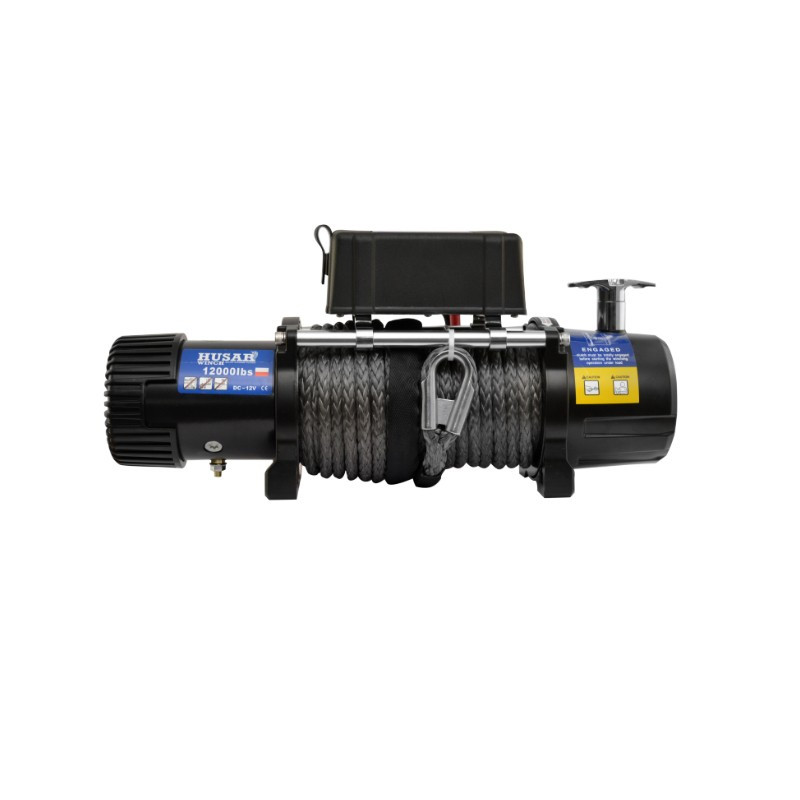

HusarWinch 12000 lbs (5443 kg) 24V

Name: HusarWinch 12000 lbs (5443 kg) 24V
SKU: HWIBST12000SIN_24
Price: 728.38 EUR
Availability: InStock

Available to order

728.38 EUR

728.38 EUR áfával

Pull capacity(single line): 12000lbs / 5443 kgs

Motor 12V: 8,1KM/6,0kW

Controls: Wired / wireless remote control

Gear: 3-stage planetary

Gear ratio: 265:1

Brake: Automatic

Rope: 25m x Ø 9,5 mm

Fairlead: 4-ways rollers fairlead

Net weight: 38 kg

Mounting bolt pattern: 254mm x 114,3mm

Dimensions(L x W x H): 546mm × 160mm × 218mm

Line speed and motor current (first layer)
	lbs	0	4000	6000	10000	12000
Line pull	kg	0	1814	2722	4536	5443
Line speed	M/min 24V	10	7	5,5	3,2	2,7

Motor current	Amps 24V	45	70	95	185	240


Line pull and cable capacity
Layer of cable			1	2	3	4
		lbs	12000	9900	8300	7000
Rated line pull per layer		kg	5443	4490	3765	3175
Cable capacity per layer		m	6	13	22	25

Details
Data

Details

Husar Winch is a recognized and proven brand that has been operating in the market for many years. Thanks to dynamic development, our products can be found throughout Europe and Asia, where we have become one of the leading brands. Husar Winch offers a wide range of electric, hydraulic, manual, chain, and workshop winches, as well as a wide range of off-road accessories, compressors, worm gears, shackles, ropes, and much more.

The idea and project were first conceived in Profel-Szydłowiec. This factory has been manufacturing winches for the heavy and defense industries in Poland and abroad for many years. Our experience has resulted in the creation of reliable, high-quality products. Thanks to the technology that pays great attention to every detail, we have gained an exceptional reputation in the market.

Husar Winch winches assist in various areas of everyday work:

ATV/Quad winches, which hunters prefer to use as game hoists on pickup trucks.
Self-recovery winches for 4x4 vehicles, suitable for every load from Suzuki to Mercedes G.
Very fast winches for off-road racing cars with our dual-motor solution.
On recovery platforms for pulling damaged cars.
High-performance 24V and hydraulic winches on off-road trucks.
Manual winches on car transporter trailers.
In workshops, our high-quality 220V remote-controlled lifting winches are used.

Data

EAN code:

5903738831203

Warranty :

2 years

Pull capacity (single line):

12000 lbs/5443 kg

Controls:

wired/wireless remote control

Gear:

3-speed planetary gear

Gear ratio:

265:1

Brake:

automatic

Mounting bolt pattern:

254 mm x 114,3 mm

Dimensions (L x W x H):

546 × 160 × 218 mm

Weight:

35 kg/pcs
